What is the 'S' trim package

Highfield · Post by **Highfield** » Tue Jan 23, 2007 8:34 pm

I noted Alan.UK is selling some rear bumper corners with the 'S' wide trim insert.

This got me thinking (dangerous territory I know).

What exactly is the 'S' trim option - keen to see if any of it is fitted to my humble 'T'.

Pictures would help as always.

Ian

hmy7k · Post by **hmy7k** » Tue Jan 23, 2007 9:16 pm

As I understand it S trims includes rubber/chrome bumper protection, anodised wheel arch trims, and chrome sill trims.

Lightweight_911 · Post by **Lightweight_911** » Tue Jan 23, 2007 9:27 pm

The usual 'S Appearance Group' package included:

F&R wide 'S' bumper trim
Wide alumimium sill trim
'S' gauges (except rev counter)

but any 'S' options except the engine could be ordered :

'S' front spoiler ('72/'73 only)
'S' front brakes
F&R antiroll bars
Koni shocks
6x15" Fuchs etc

Lightweight_911 · Post by **Lightweight_911** » Tue Jan 23, 2007 9:32 pm

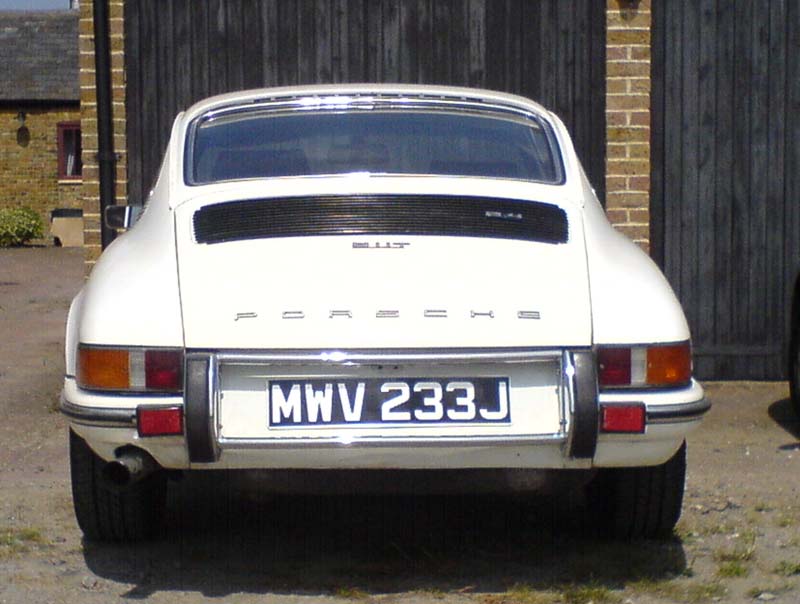

Here's my '72 911T with S Appearance group package:

1972_911t · Post by **1972_911t** » Wed Jan 24, 2007 9:50 am

Lightweight_911 wrote:The usual 'S Appearance Group' package included:

F&R wide 'S' bumper trim
Wide alumimium sill trim
'S' gauges (except rev counter)

How can you identify S gauges as opposed to std T ones, my car had the S bumper trim and wide sill trim and also the roll bars, wouldnt know the difference with the gauges though.

Steve

Highfield · Post by **Highfield** » Thu Jan 25, 2007 2:59 pm

Andy,

Specifically, what is the wide sill trim.

I have sill trims and what I believe to be wide bumper trims.

i ALSO HAVE f&r ANTI ROLL BARS AND 6x15

Ian

Post by **Bootsy** » Thu Jan 25, 2007 3:30 pm

My old Sepia Brown 'T' (now owned by Ron Vincent) has an S Trim pack on it.

Lightweight_911 · Post by **Lightweight_911** » Thu Jan 25, 2007 5:55 pm

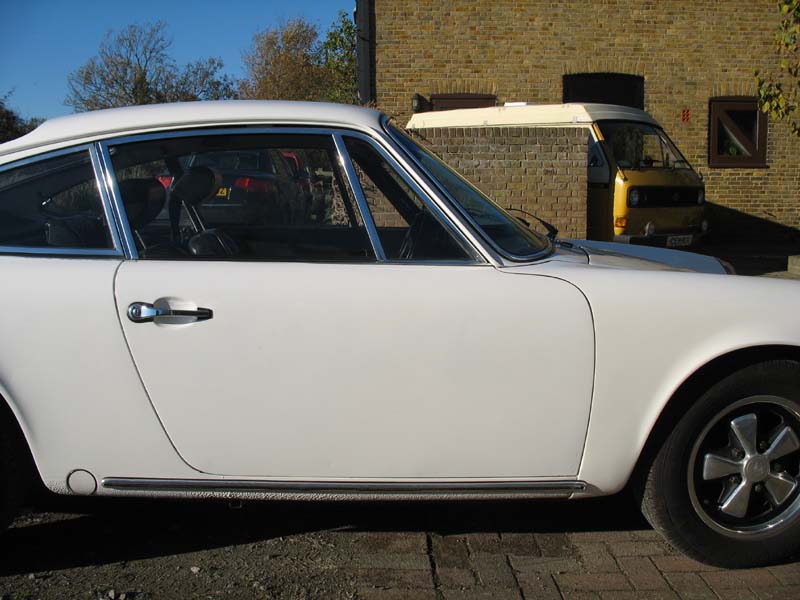

Ian - the 'S' wide sill trim is the part arrowed in the picture below:

Lightweight_911 · Post by **Lightweight_911** » Thu Jan 25, 2007 6:20 pm

Steve - 'S' gauges comprised:

combined fuel level + oil level
combined oil temperature + oil pressure
rev counter
speedo
clock

Although you rarely see original non-S gauges still fitted these days, unless they were ordered with 'S' gauges, T models (& for some years E models too) came as standard with:

fuel level only
oil temperature + warning lights
rev counter
speedo
clock

Nick Moss · Post by **Nick Moss** » Thu Jan 25, 2007 6:49 pm

These are standard T trims

Highfield · Post by **Highfield** » Thu Jan 25, 2007 9:35 pm

Thanks for the pictures - a great help.

So I have 'S' width bumper trims ?

Wide sill trims :-

Fuchs 6 X 15

Are these 'S' guages ?

Finally, I have Front & Rear anti roll bars (no picture)

Not sure whether to go for a front 'S' spoiler or not, as if it reduces ground clearance, it may not be so good for planned 'B' road regularities.

Ian

Gary71 · Post by **Gary71** » Thu Jan 25, 2007 9:52 pm

Looks like you have all the S trim

same as my T. I also have the S front spoiler and ground clearance is never an issue, you can still park a bus under it

Highfield · Post by **Highfield** » Thu Jan 25, 2007 10:09 pm

Gary - great looking car after the rebuild.

Original 'S' steel bumpers are expensive, and not sure if I really need one, so will do a 'poll' posting.

Ian
