Hi everyone,

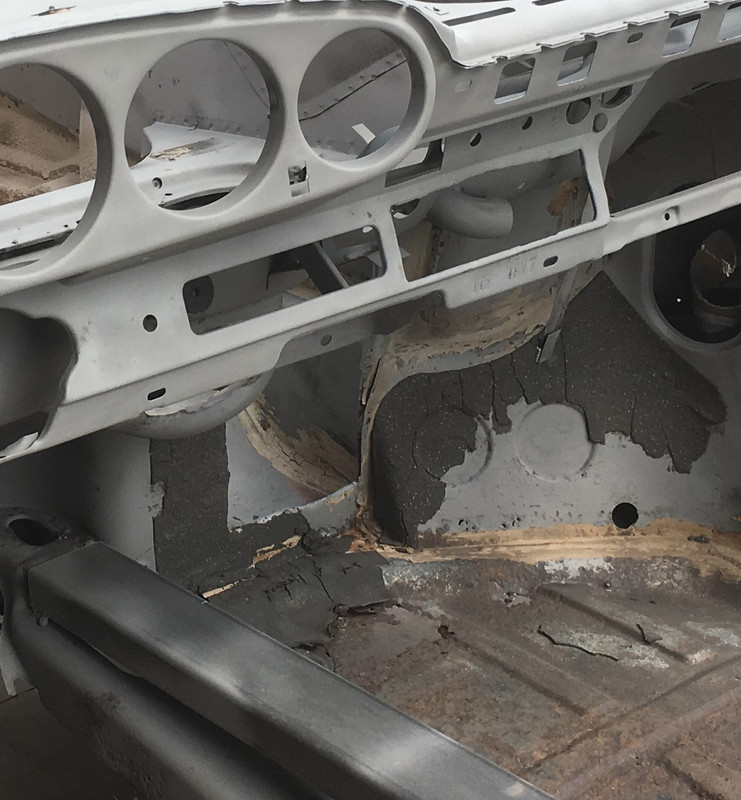

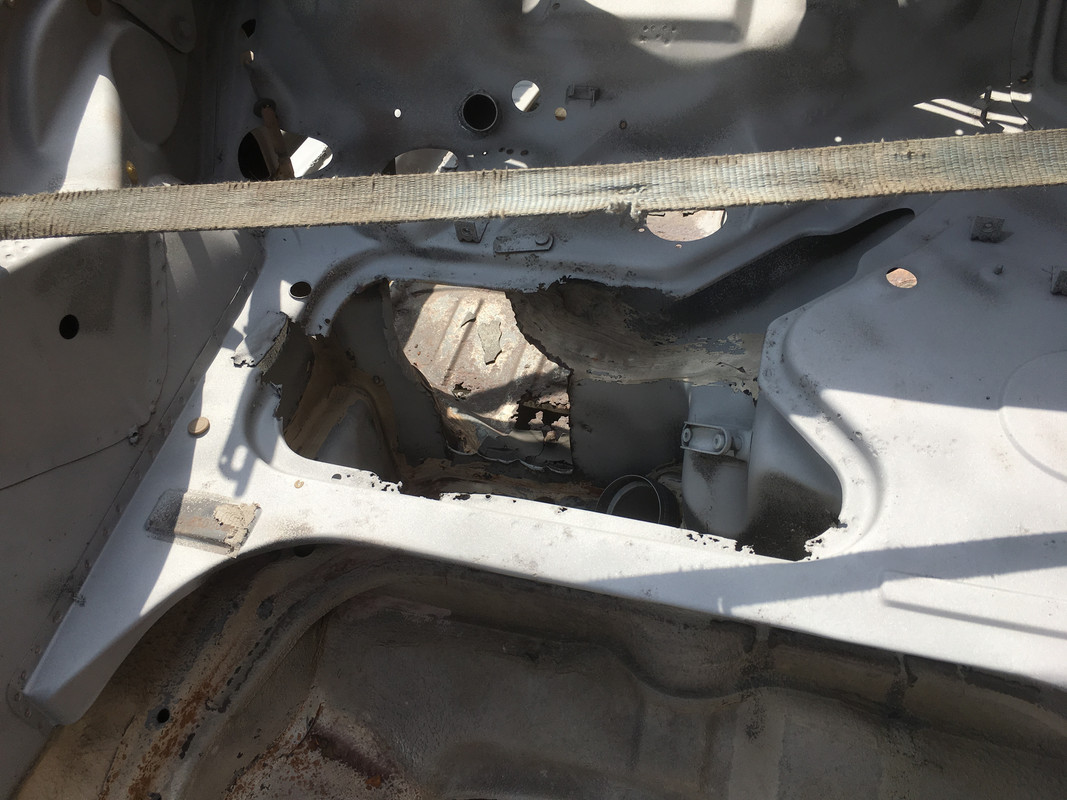

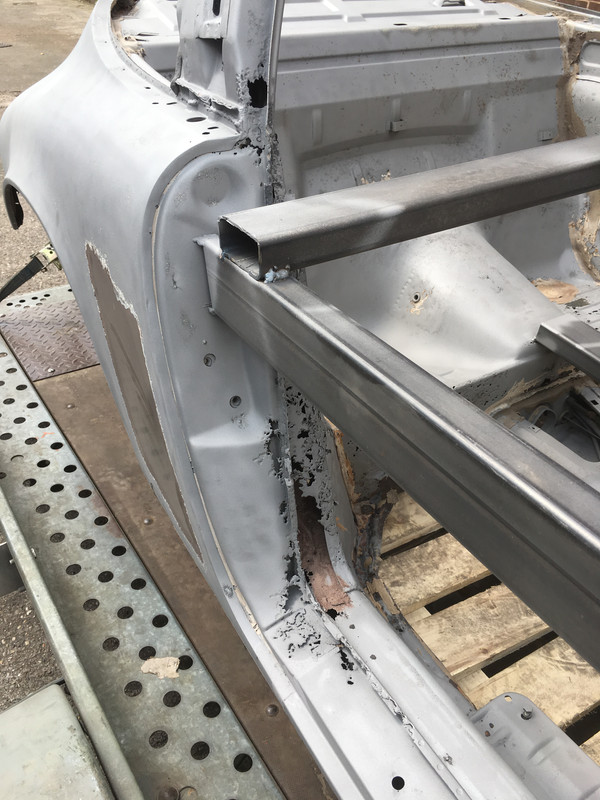

I thought I'd share my very reverend (holey) 2.7 targa restoration, I had the body shot blasted to reveal the true extent of work needed,oops












You get the idea

[911hillclimber]

Good grief!

[maxakarudy]

Hey guys,

I managed to upload good images so will show my restoration

[911hillclimber]

Just read the pages on the link above.
I do not do Facebook, too many welding critics!

It all looks great, so pleased to see another diy restoration and of a very high standard.

Especially impressed with the rear deck lid restoration, I have a rusty corner to tackle soon, the steel is so thin.

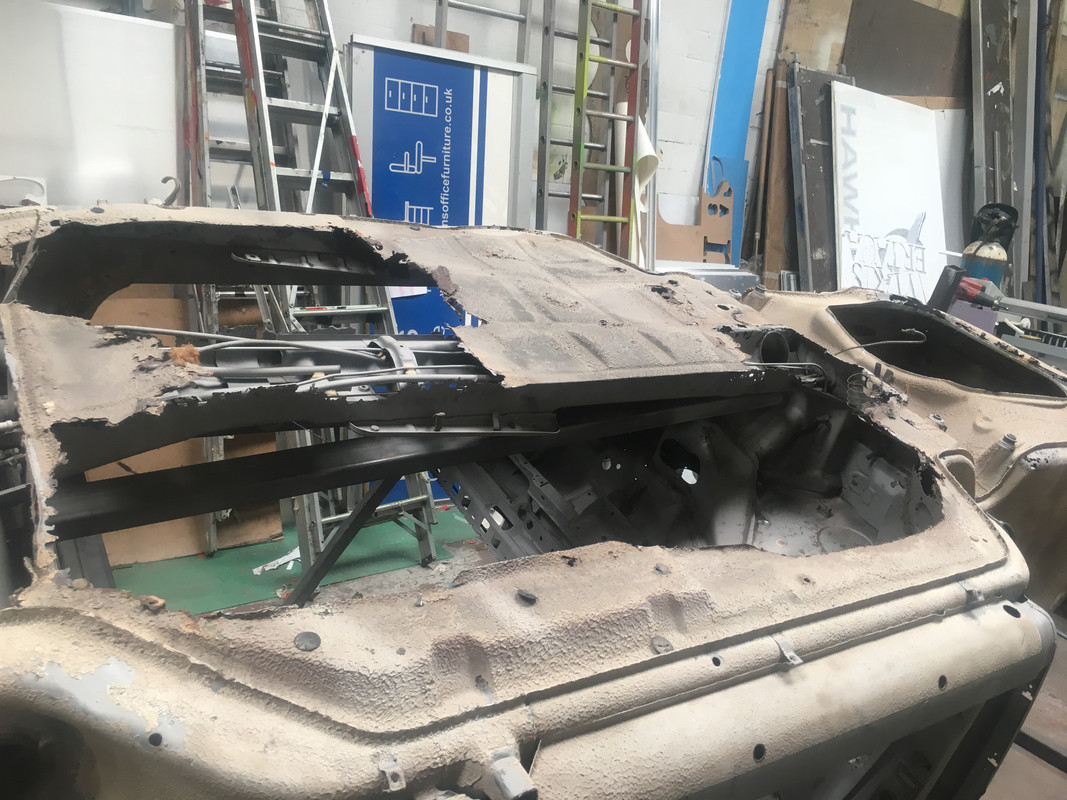

You must be close to doing the whole floor, wise move to replace the lot.
Is the base of the targa hoop ok?

I went to school in Stockland Green. not often people on here are in the Birmingham area.
Post image is a very simple and robust system to post on DDK.
Graham.

[maxakarudy]

Thanks Graham,
Yes not too many real Brummies about these days, you're an Erdington lad then, I'm from Selly Oak!
Yes, 80% rebuilding of the deck lid was a challenge, wheeling the skin, didn't initially seem too difficult, but nothing is straight forward when you realise what is truly involved, but that's why I do it.

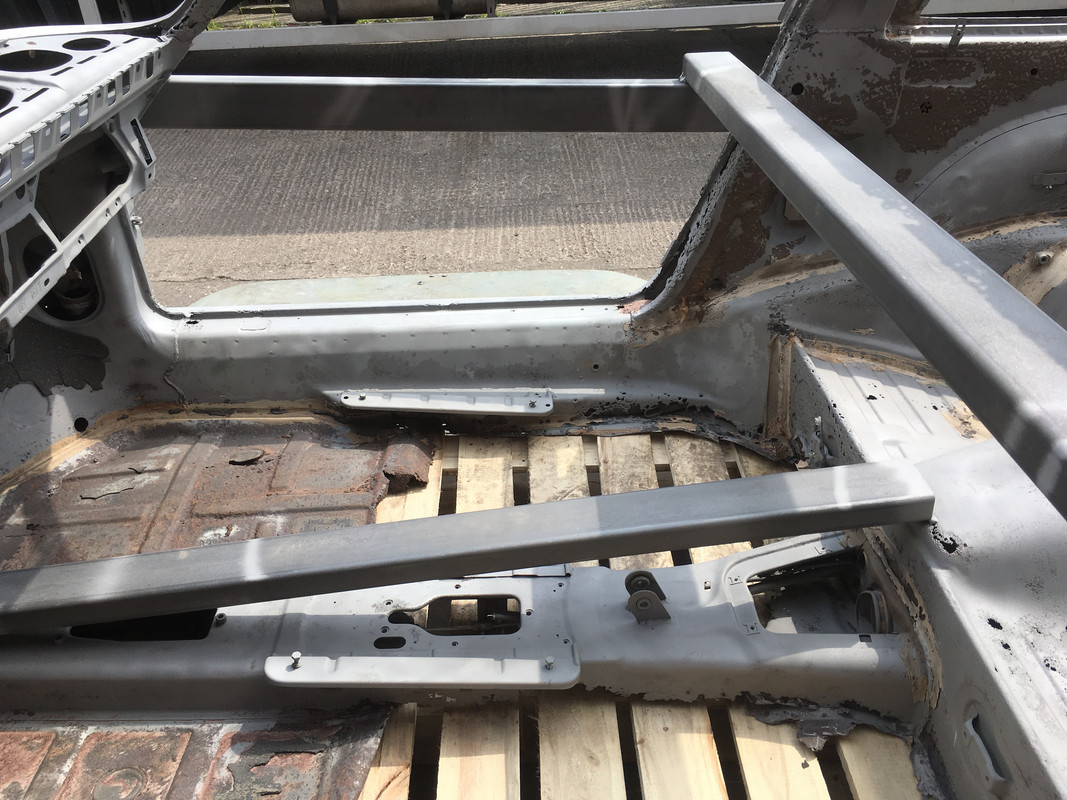

Yes the floor can go in now, but not until I've done every job in the cabin, leaving the floor out gives me better access at the moment..
The inside of the Targa hoop was knackered, I had to make a special tool for the inside profile to rebuild it, another first for me.

[911hillclimber]

Went to school in Stockland Green as it was an Art School I went to, but bought up in Stechford!
Big place Birmingham.
Just looked at some of Barry's work on another thread, heaven help me.

[maxakarudy]

This is one of the first parts I tackled

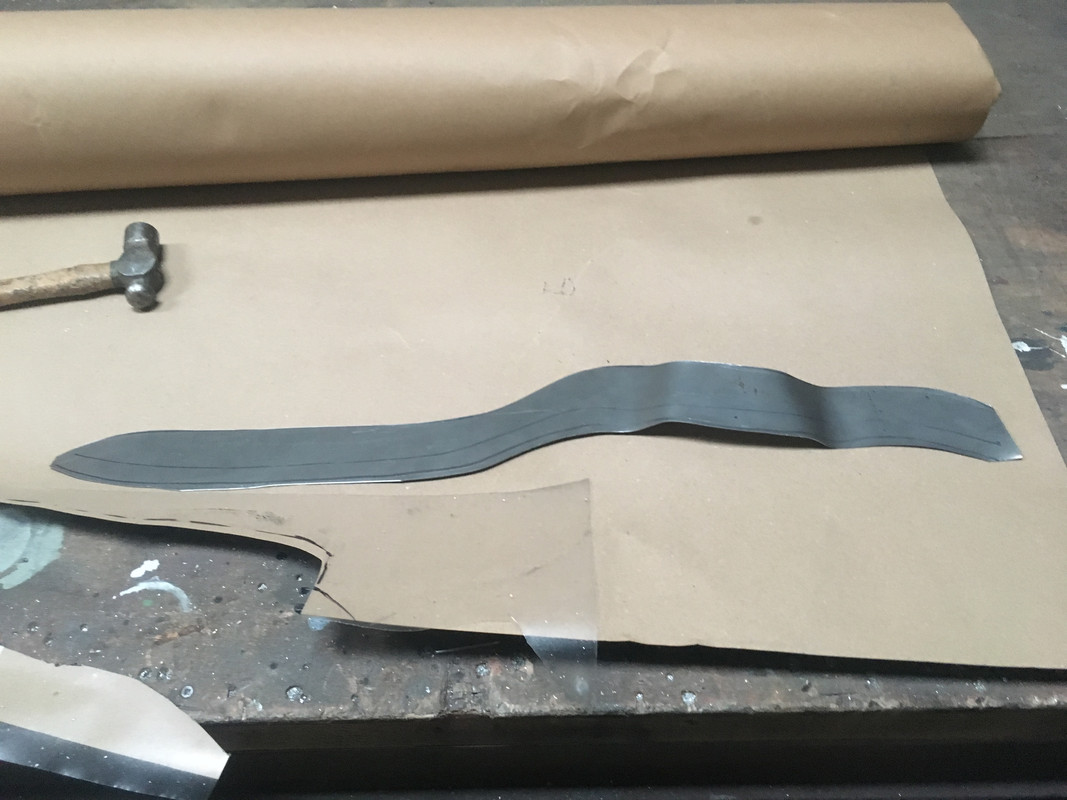

Started with a flat piece

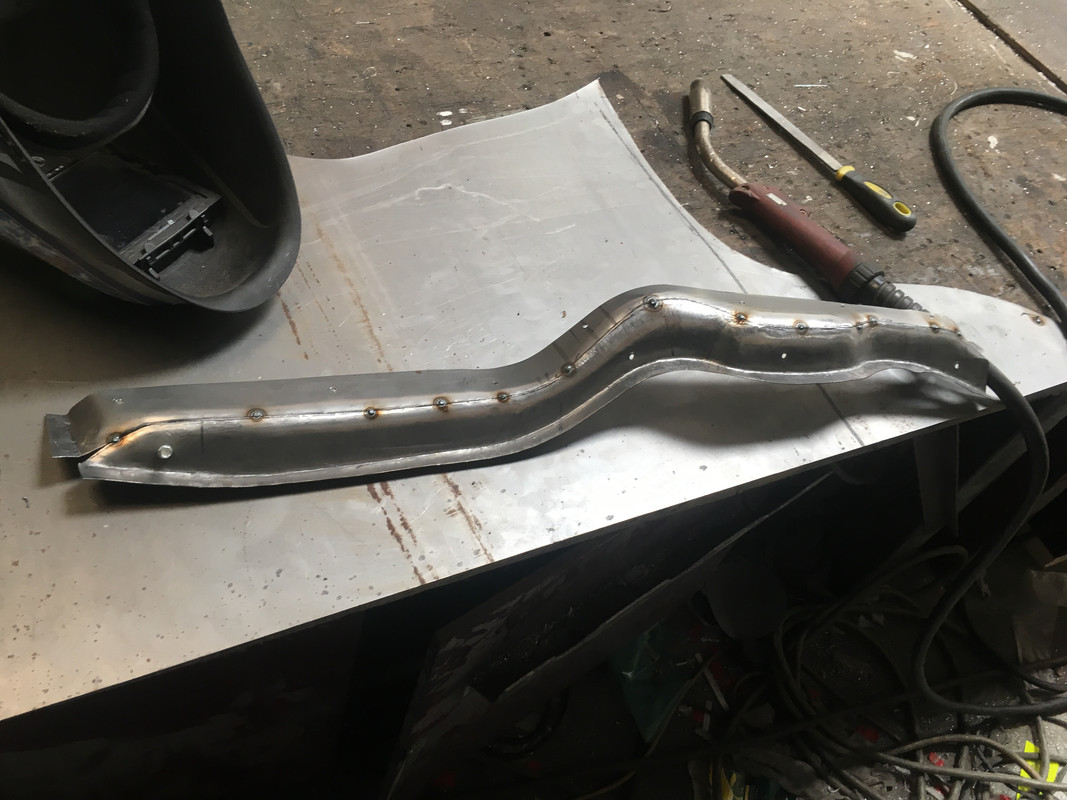

After a lot of stretching, shrinking & shaping I got both halves tacked together

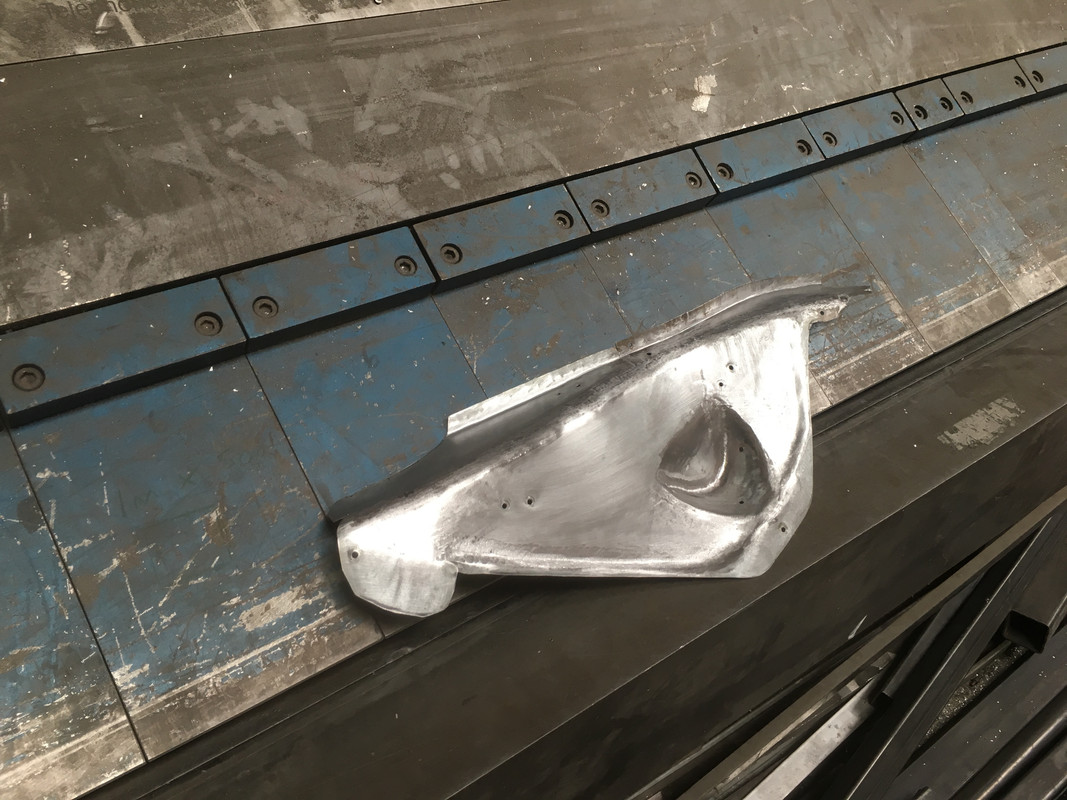

Then fully tig welded

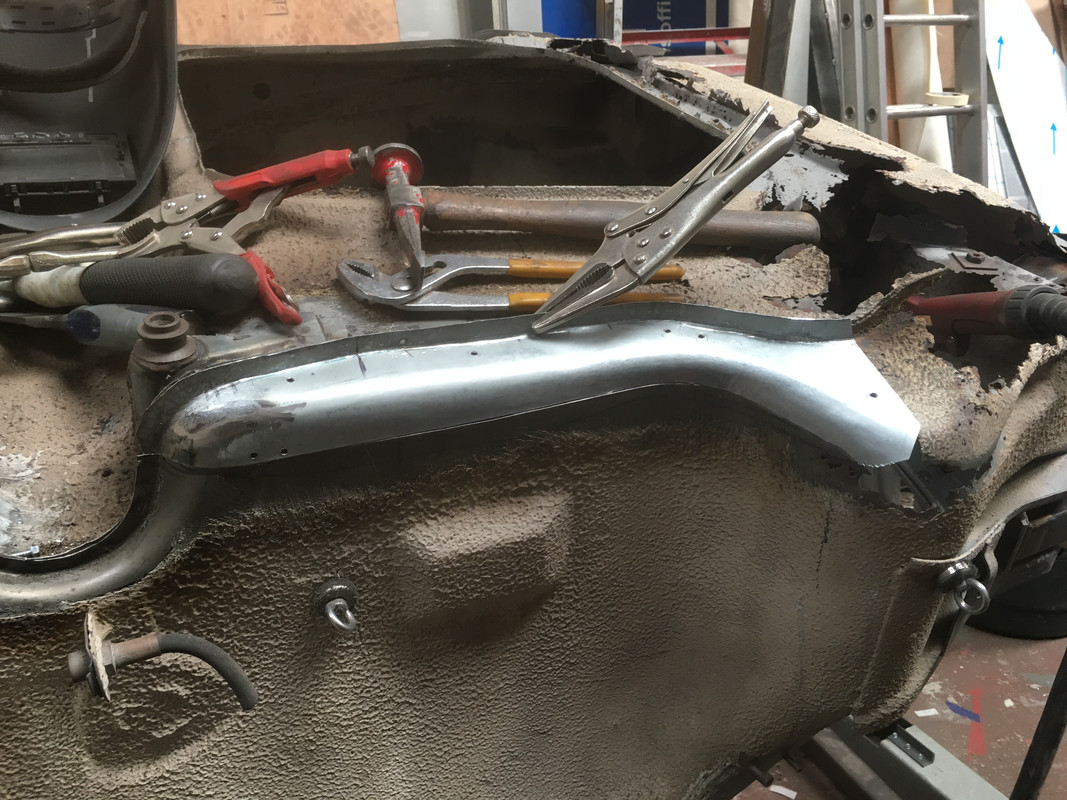

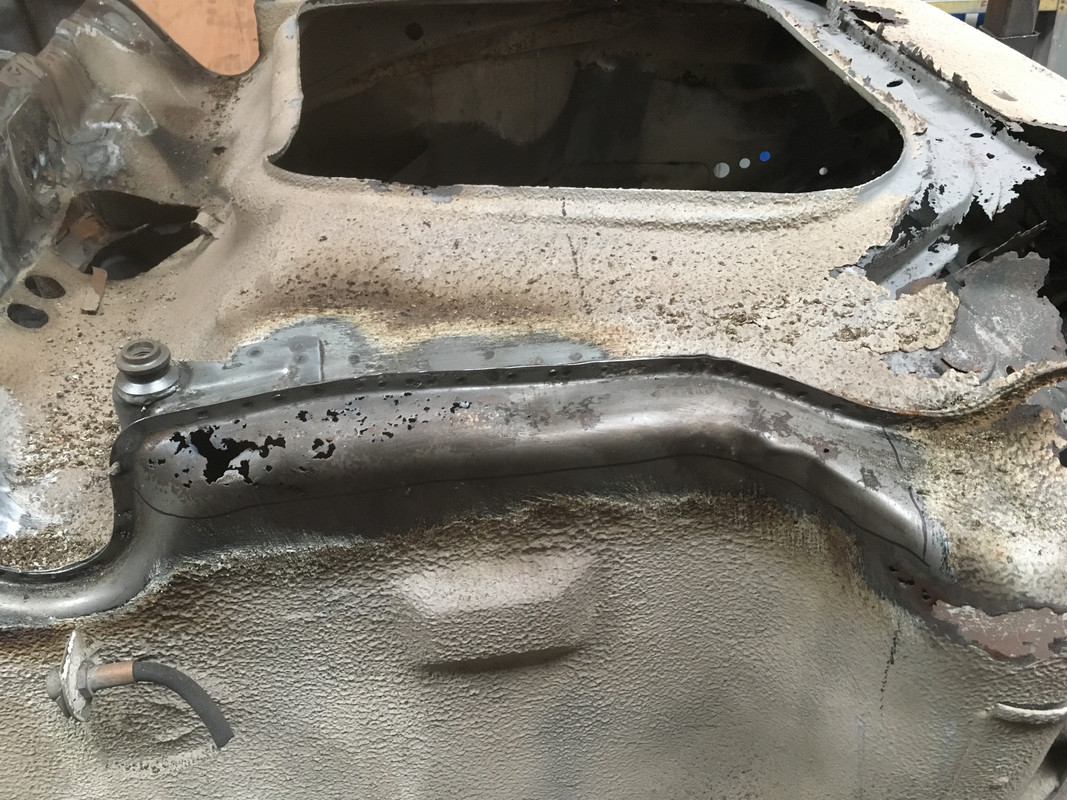

Then trial fitted to body so I could scribe it before cutting out of rusty section

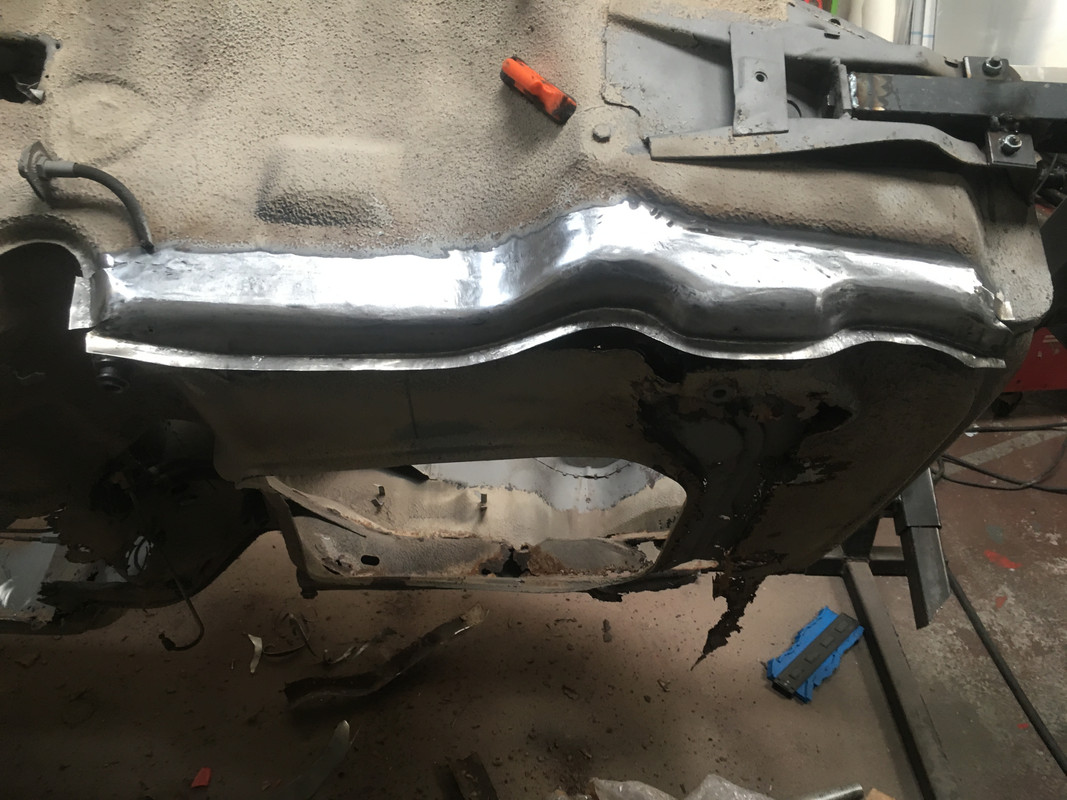

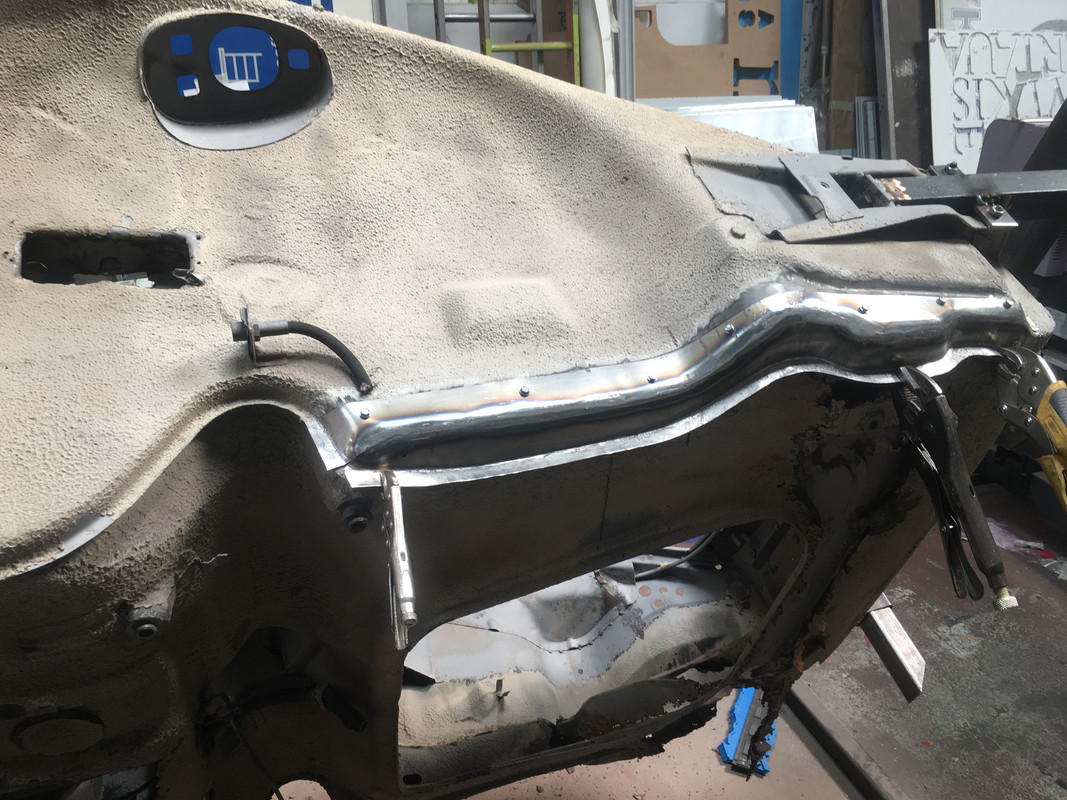

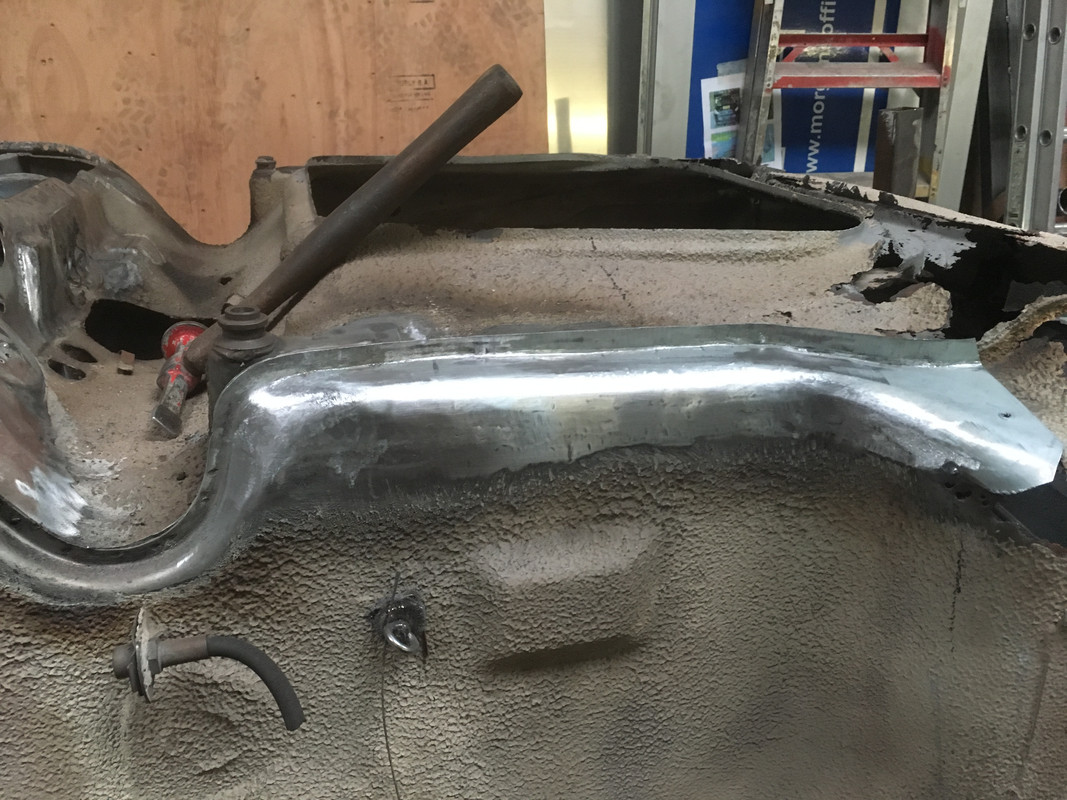

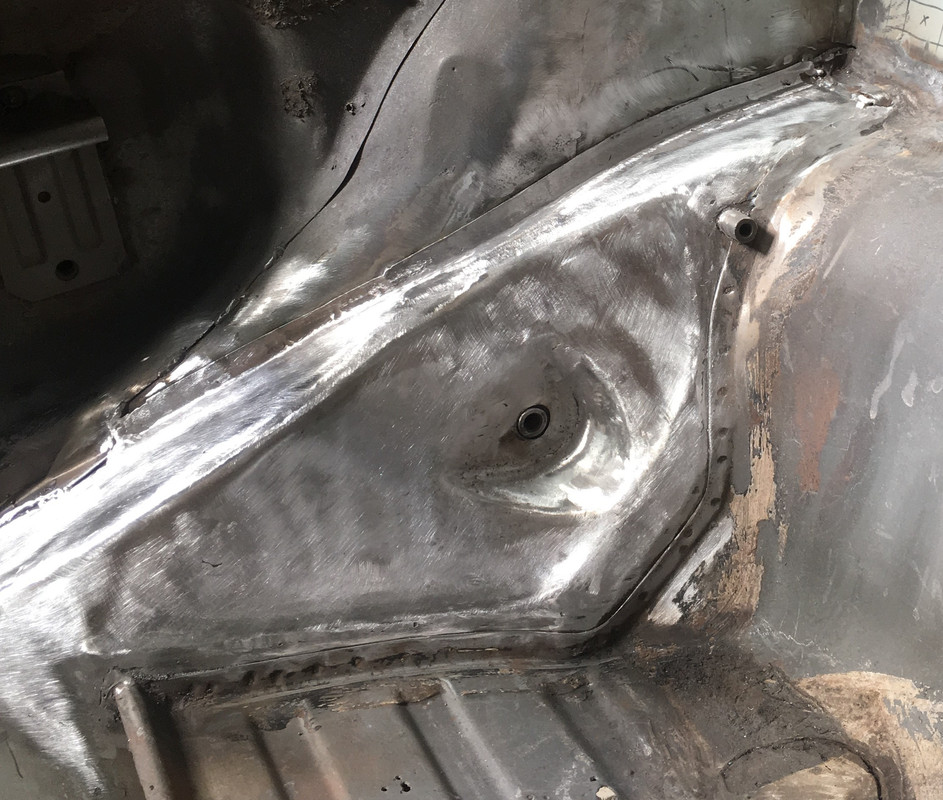

Then cut the body & welded in


More to follow
Martin

[maxakarudy]

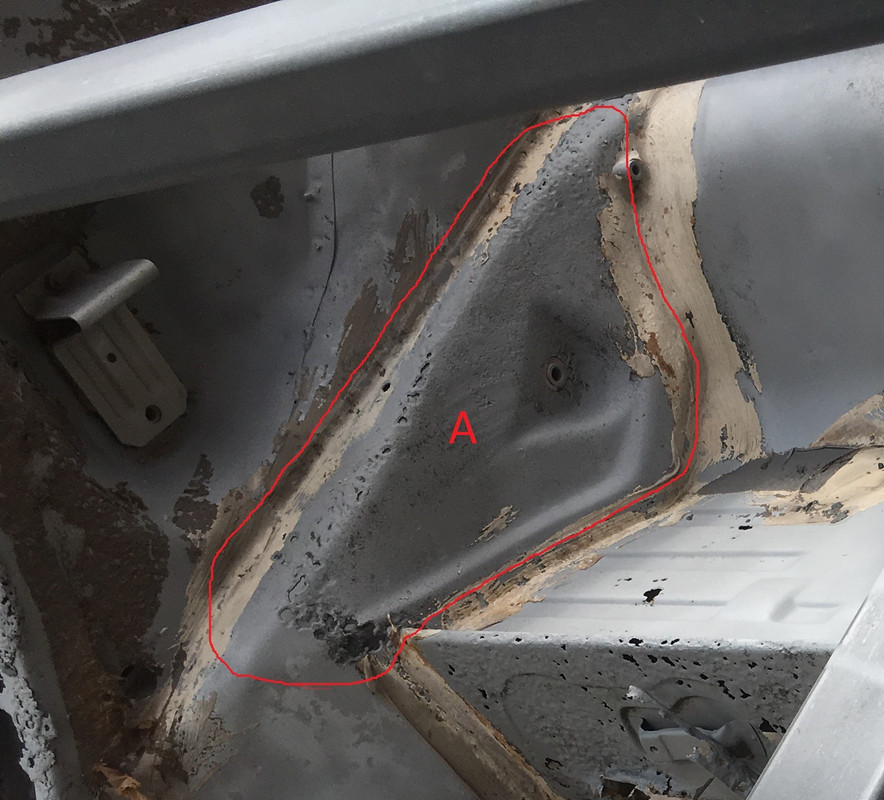

As you can see from the above pictures, back seat this needed replacing.
I might add, I know a lot of these parts are available to buy at reasonable money, however the aim of this restoration is too improve my fabrication skills, not too spend my children's inheritance

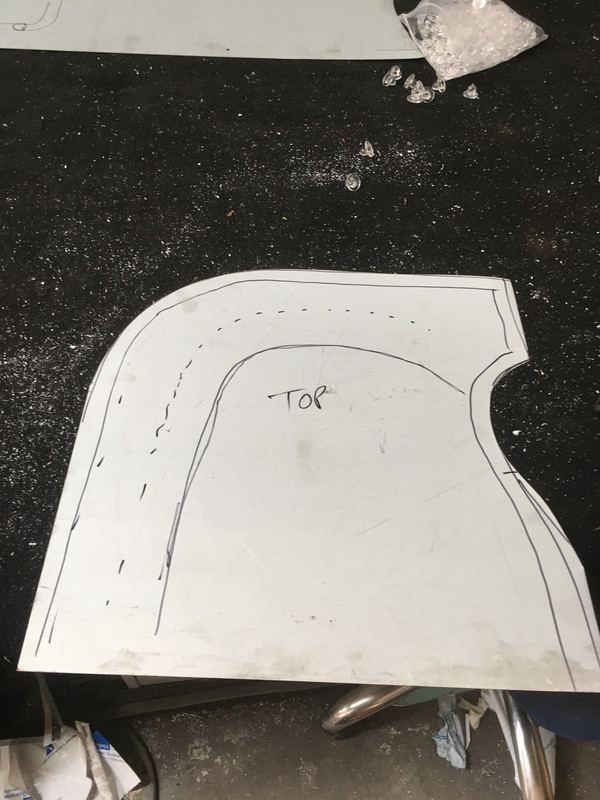

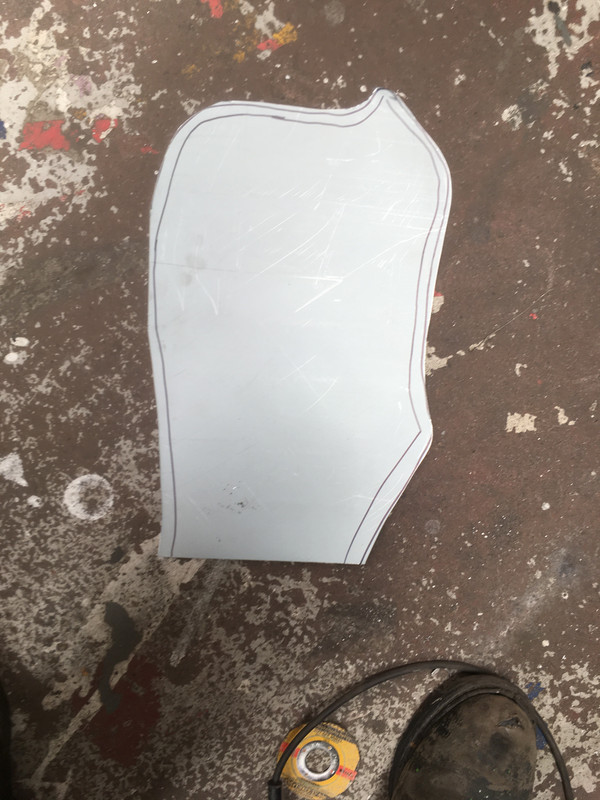

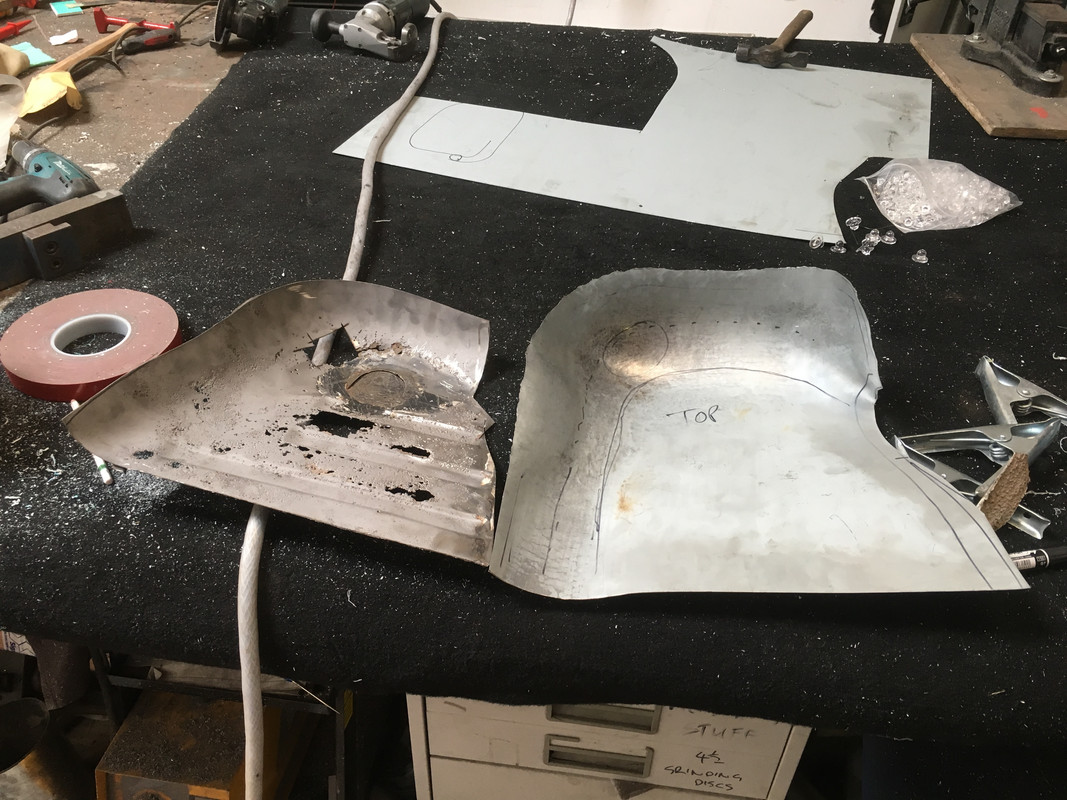

Cut out a rough shape, with shaping approximations for curves



A lot of hammer work later, I'm getting somewhere



After a lot more shaping, smoothing & trimming, test fitting



And finally welded in & metal finished



There was about 12hrs work all in all on this piece.

[Darren C]

Excellent Fab skills there Martin, wouldn't say you need to improve them; more like use them
Top Job!

[Gary71]

Excellent stuff.
Good selection of diy rebuilds underway!

[Bootsy]

Good selection of diy rebuilds underway!

Indeed there is, great to see

[maxakarudy]

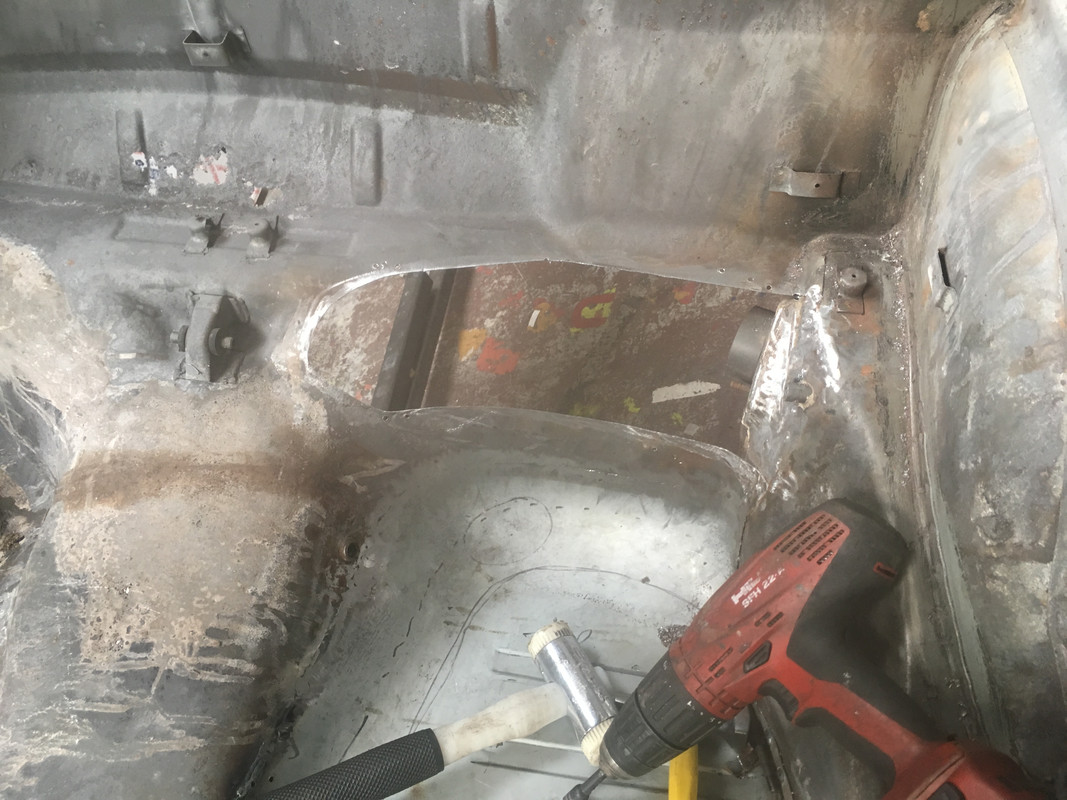

More work on the rear seat area, first cut a big hole



Then fill it, there was a lot of reverse stretching in this part, btw the metal I use is called Zintec, it has a zinc coating, hence it's colour, this is just tacked in place at the mo

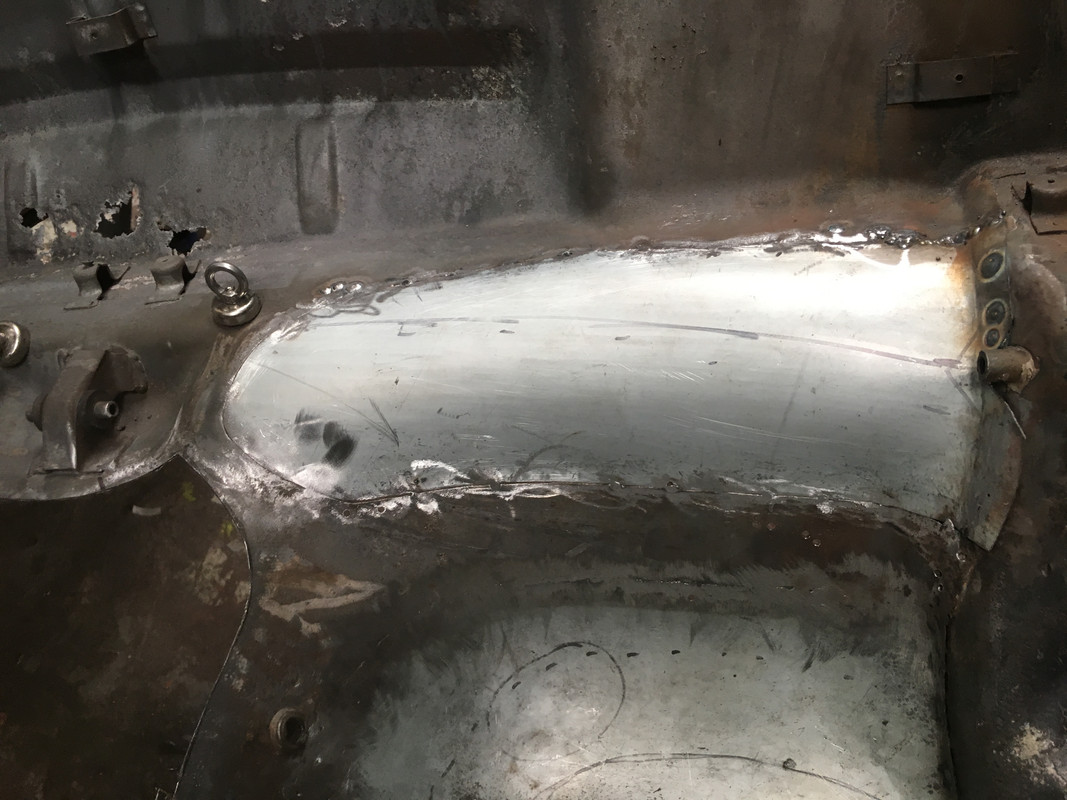

And welded up...

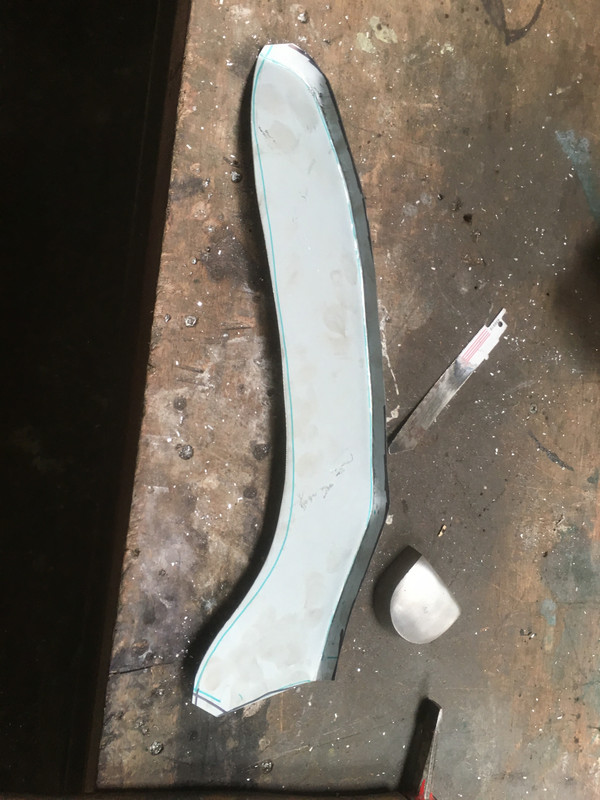

Now, the centre panel was very pitted(see above), best do that too, cut a blank



Give it some shape & tack it in..

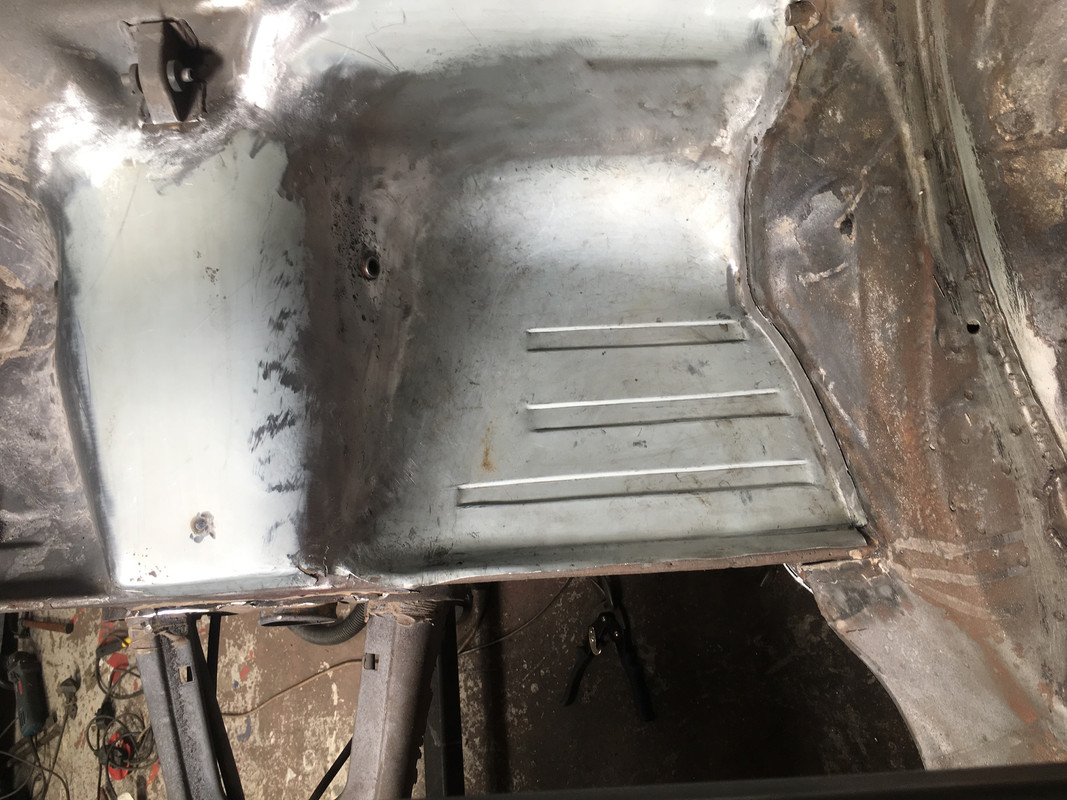

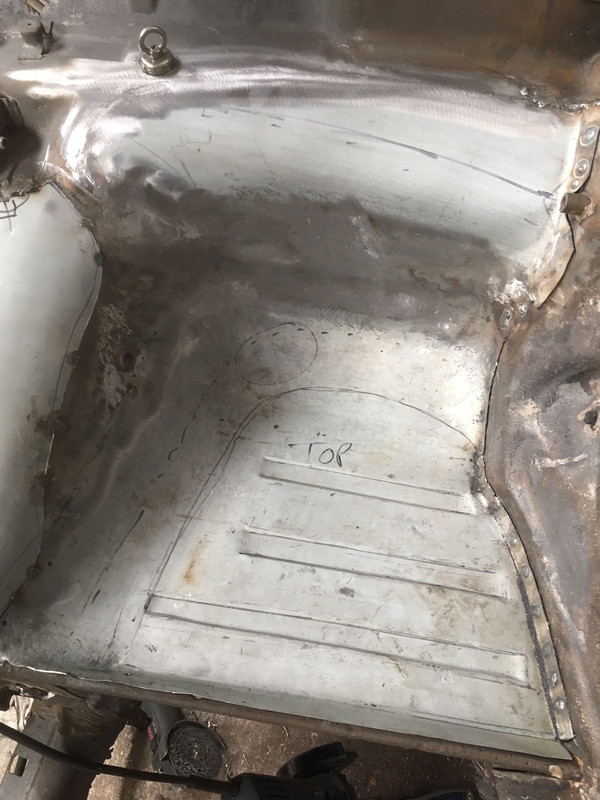

All 3 repair panels blended in

[maxakarudy]

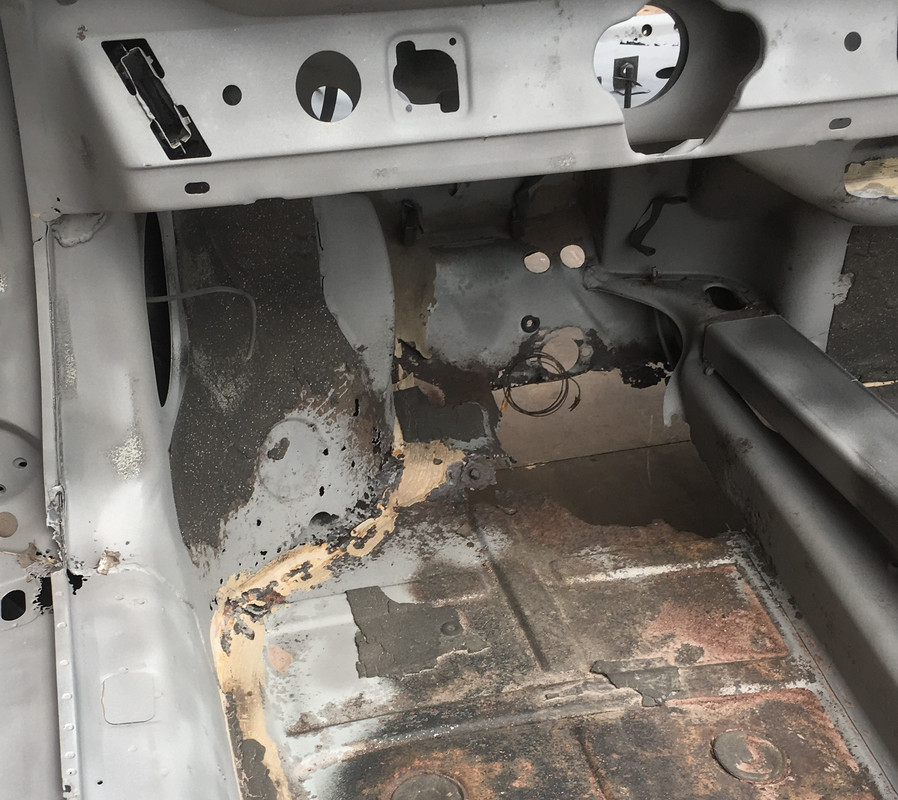

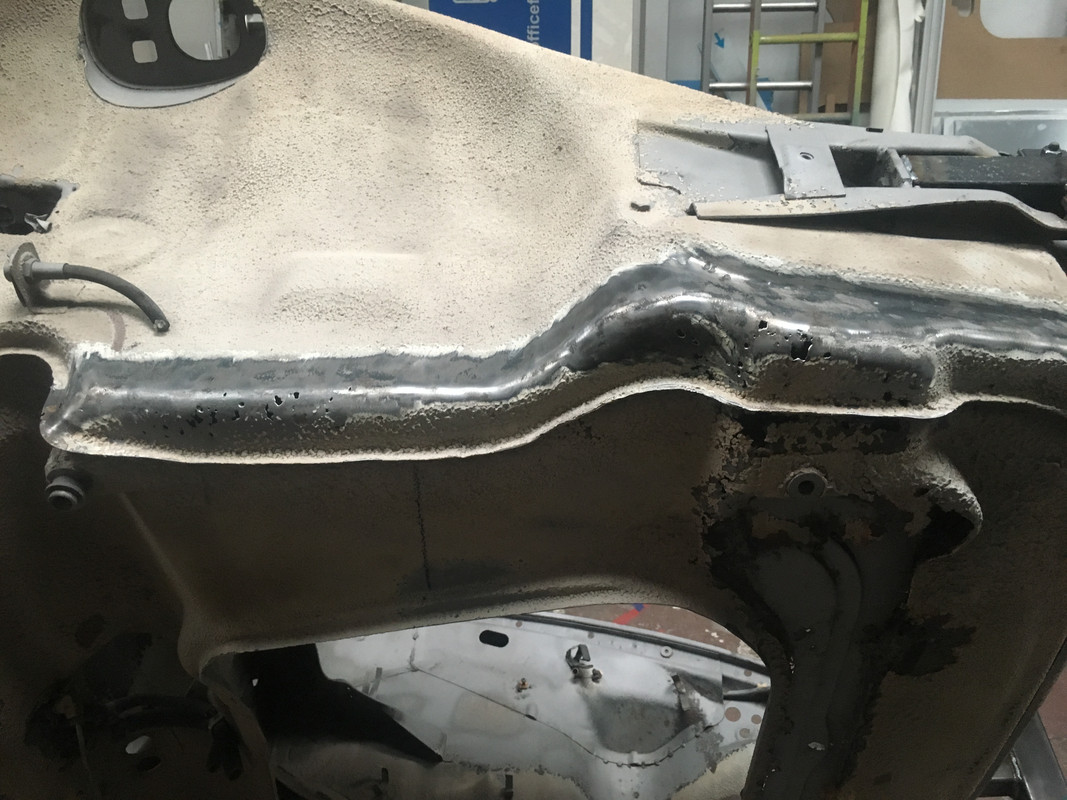

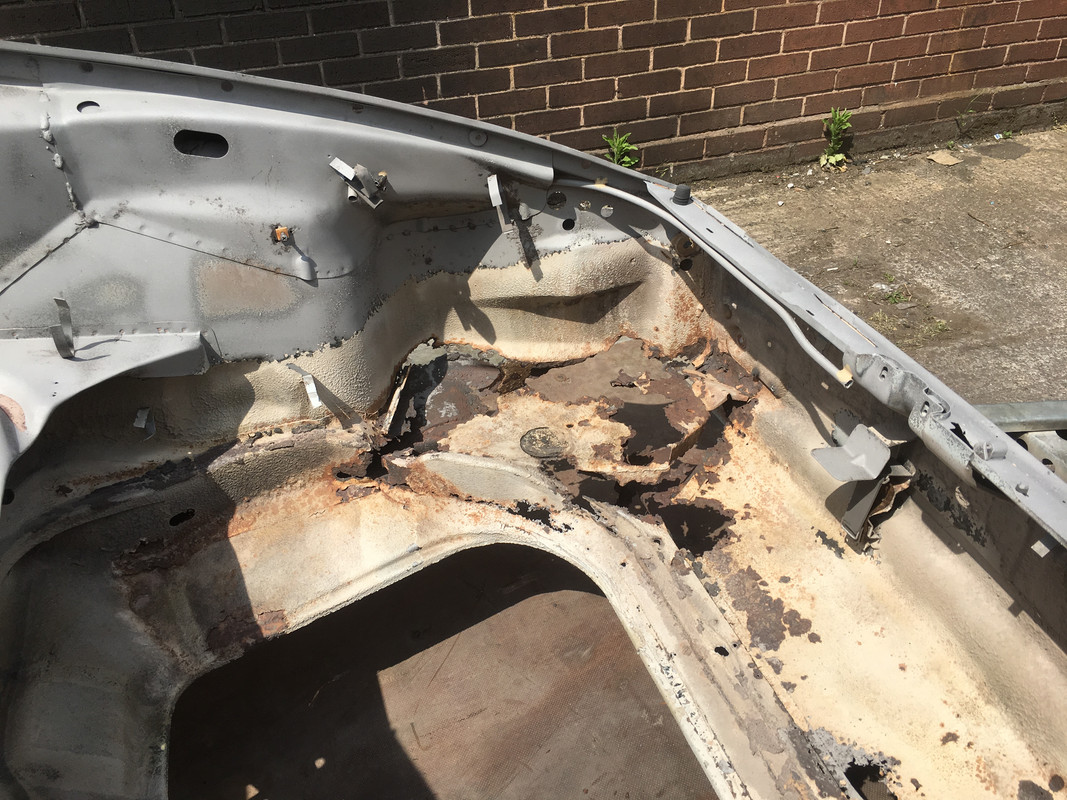

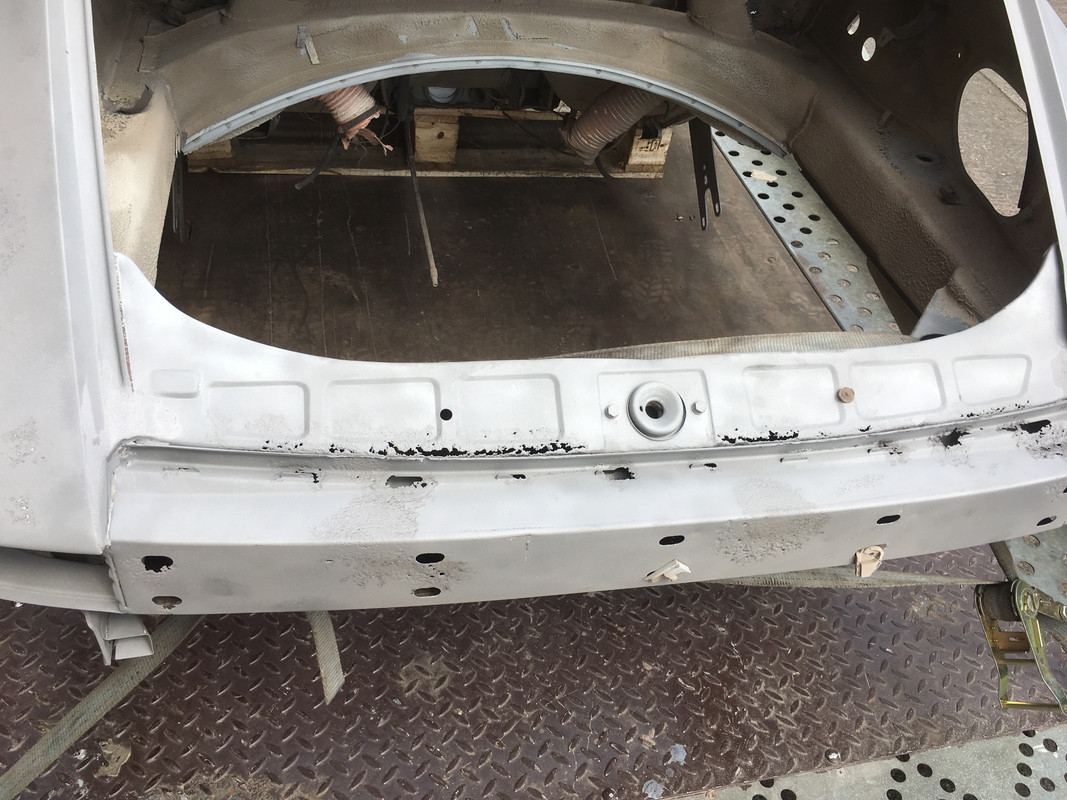

More rust remedy..

[maxakarudy]

Quite a challenging piece, made from 4 sections..

[jtparr]

Hi Martin

Superb workmanship....well done...
looking forward to more of this....

All the best
Jonathan
