heat exchangers

[Dean.s]

available shortly.

Left and right heat exchangers.

I need to get dimensions from the fittings before i can sell them.

i will have pics to email.

not sure on price. guidance/offers invited in due course.

due to size and weight they must be collected.

[stevenery]

Looking at previous posts if they are from your 1700 then take a look on EBay. There is a stainless set with exhaust box for £495. The UK914 Facebook group also very active once ready to list for sale.

[KS]

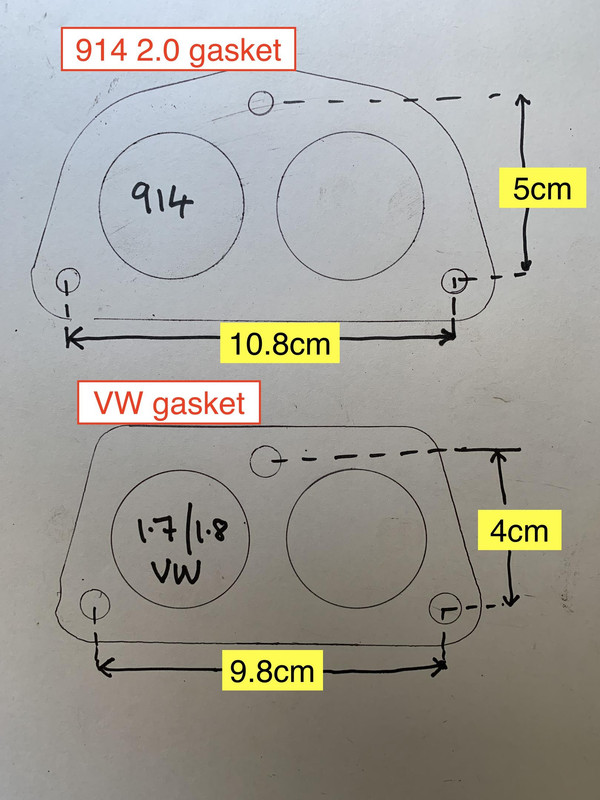

Here you go - the differences in bolt hole dimensions for 2.0-litre and 1.7/1.8-litre heat exchangers.

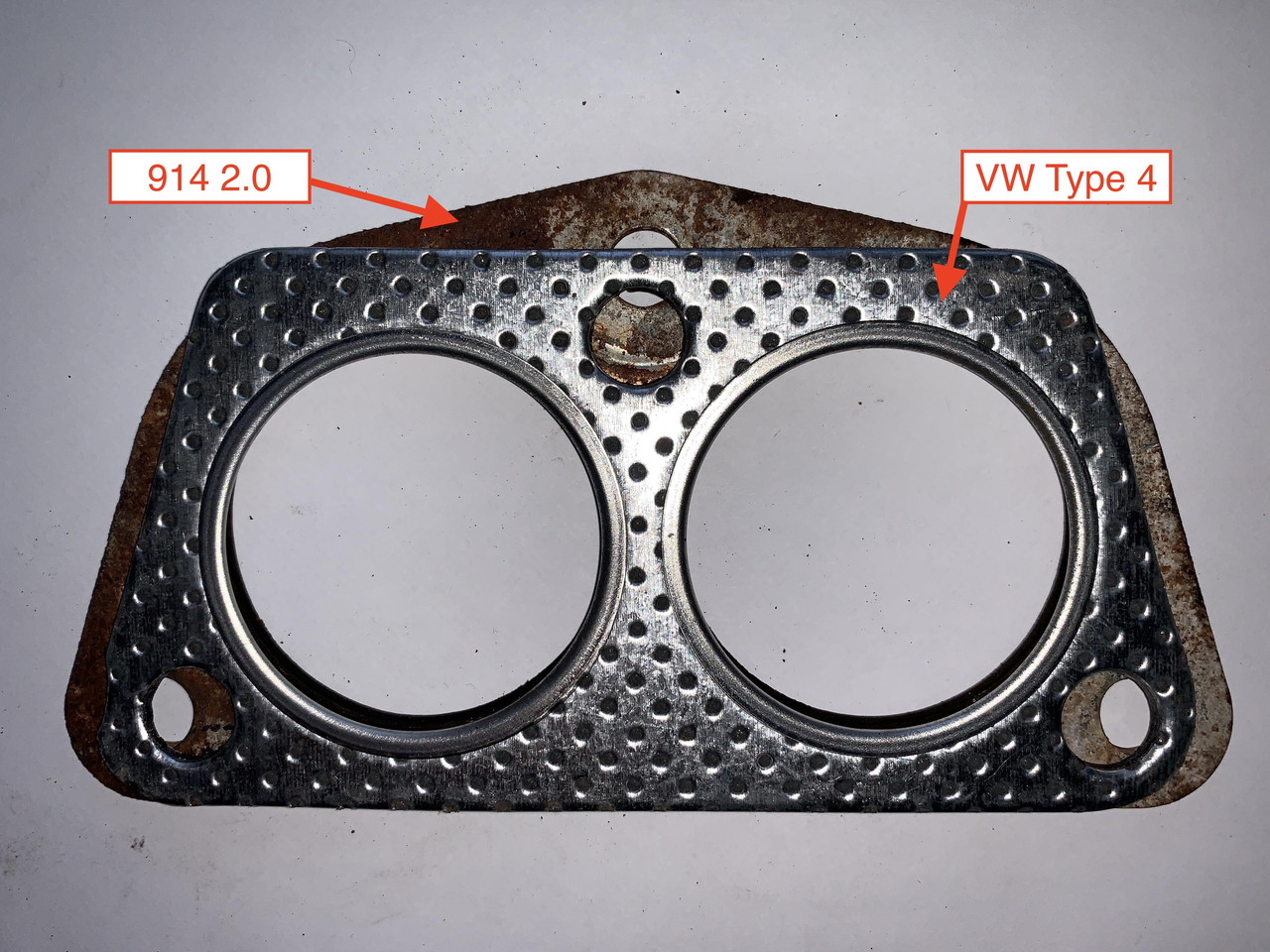

And here are the two different gaskets overlaid...

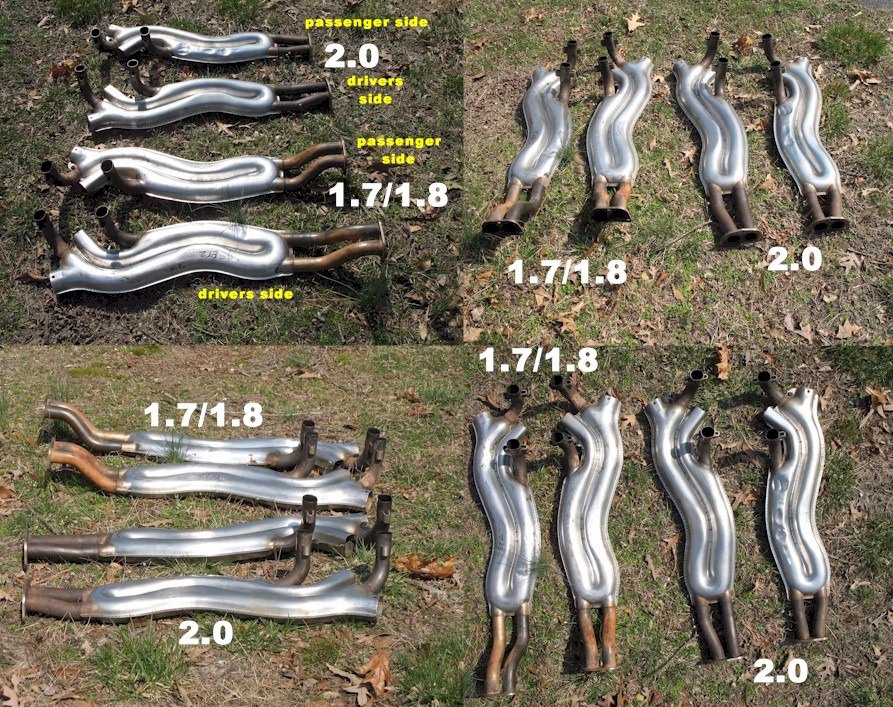

And visual differences between different exchangers...

[Dean.s]

Thanks for the info.

I thought i caught a lucky break and actually had 2.0 heat exchangers!

not a chance. bugger!

so new silencer, different hanger too if I'm not mistaken and then i need to make replacement pipes to the silencer!! I'm both too tight and too skint to buy premade ones!

[KS]

[Dean.s]

Thanks Kieth.

As i have a '74 2.0 from factory i guess i need to purchase a B bracket.

Or i get creative with the new welder

[Dean.s]

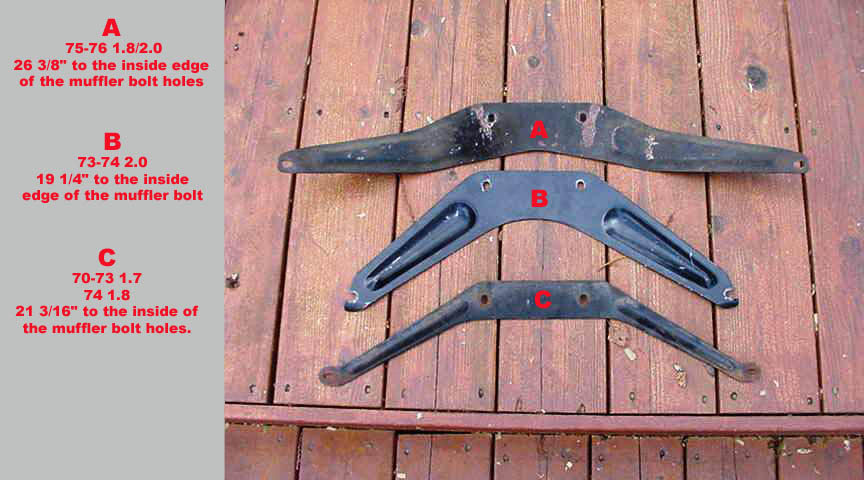

would someone be kind enough to provide the overall height of the hanger (B in Keiths pic) for the 1974 2.0 hanger please & thank you.
