alternator problem

diescher · Post by **diescher** » Fri Jun 02, 2006 10:08 am

Can someone send me pics? I need to see the correct position of the alternator and electrical system

Thanks

bjmullan · Post by **bjmullan** » Fri Jun 02, 2006 10:45 am

I'm at work at present but if no one else can help I took pictures of my alternator in place (just for that reason) and I can either post them on the site or email them to you.

davidppp · Post by **davidppp** » Fri Jun 02, 2006 1:36 pm

Hello, diesher.

No problem.

Just put it back in the only way it will fit..ie with the rear terminats horizontal and the fanhousing enged in the dowels at the bottom on the case.

Or is there something specifically puzzling you?

Kind regards
David

diescher · Post by **diescher** » Mon Jun 05, 2006 7:14 pm

Can someone send me pics of the alternator position please?

thanks

Nick Moss · Post by **Nick Moss** » Mon Jun 05, 2006 10:12 pm

The problem is that the alternator is invisible with the engine assembled. It actually doesn't matter which way the alternator is aligned, but try and get the terminal markings, B+, D- etc, readable horizontally. What is important is the position of the ducting that fits over it. The horizontal portion is at the bottom.

Nick Moss · Post by **Nick Moss** » Mon Jun 05, 2006 10:21 pm

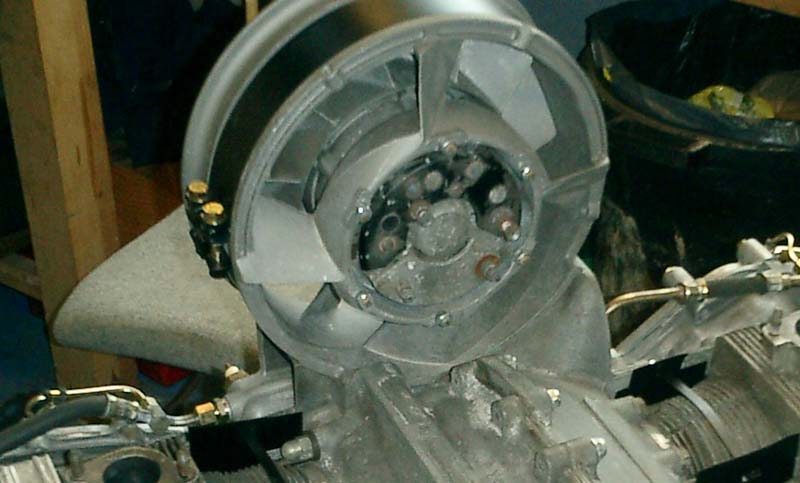

I hope this helps, its a 68S

tanick · Post by **tanick** » Mon Jun 05, 2006 10:31 pm

Here's a 72 car. Hope it helps.
