Could someone post or email me a photo of the steel brake pipes that run along the front bulkhead on a RHD 1970 or thereabouts 911. It connects the reservoir to the master cylinder. I have them but I think they've been shortened. These are RHD only.
Regards Stefan.
Brake pipe
Moderators: hot66, impmad2000, Barry, Viv_Surby, Derek, Mike Usiskin
-
911hillclimber
- Nurse, I think I need some assistance
- Posts: 20612
- Joined: Mon Mar 10, 2008 6:26 pm
- Location: West Midlands
Re: Brake pipe

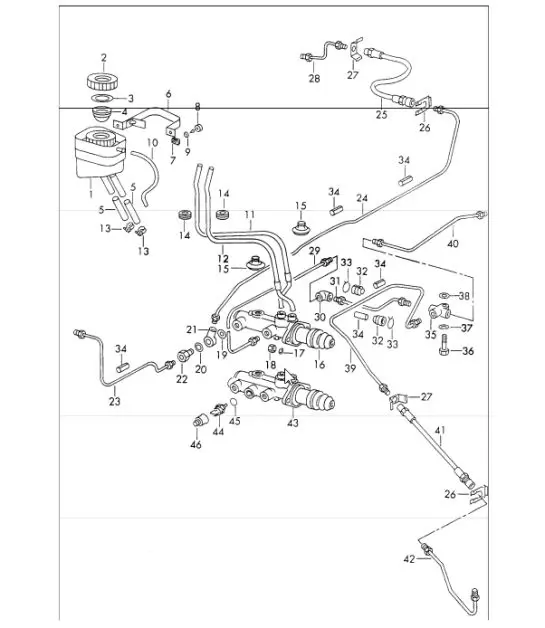

Not sure if this diagram will help, but hope it will.
Taken from the design911 site, but expect it is for LHD,
The brake pipe route will be 'set' by the small delicate clips welded to the bulkhead.
Taken from the design911 site, but expect it is for LHD,
The brake pipe route will be 'set' by the small delicate clips welded to the bulkhead.
