Missing engine lid release knob
I went to open the engine lid and the knob was gone!
I jacked the rear up in the hope the cable ran up but not
How do I get it open!
Sent from my Mi A2 Lite using Tapatalk
I jacked the rear up in the hope the cable ran up but not
How do I get it open!
Sent from my Mi A2 Lite using Tapatalk
“A REMINDER. I would be grateful if those members who have borrowed bits from me in emergencies (e.g starter motor, oil cooler, etc) would return them and/or contact me”. – Chris Turner RIP
-
- Put a fork in me, I'm done!
- Posts: 1666
- Joined: Fri Mar 01, 2013 11:45 am
- Location: Kernow - good old Cornwall
Re: Missing engine lid release knob
NEIL
It should have a knob that screws onto the end of what you can see inside the channel.
The knob must be somewhere inside the car (under the seat cushion or under the front seat rear footwell?)
If you can try and tease the threaded end out with something small and sharp, and see if you can grab one of the screw threads. Failing that you may to put a small drill hole in the middle, without pushing it in further, then install a self tapping screw to pull the threaded bar out.
It should have a knob that screws onto the end of what you can see inside the channel.
The knob must be somewhere inside the car (under the seat cushion or under the front seat rear footwell?)
If you can try and tease the threaded end out with something small and sharp, and see if you can grab one of the screw threads. Failing that you may to put a small drill hole in the middle, without pushing it in further, then install a self tapping screw to pull the threaded bar out.
-
- Nurse, I think I need some assistance
- Posts: 7490
- Joined: Sat Aug 04, 2007 3:05 pm
- Location: Harrow Gate.
- Contact:
Re: Missing engine lid release knob
From the owner's manual :-
The emergency opening for the the rear hood lock is in the rear cross member of the frame below the hood lock.
Remove the rubber cap from below.
Move the hood latch through the emergency access to the left by means of a strong rod approx 1/4" diameter.
Alternatively, can you remove the grille and get in from the top ?
The emergency opening for the the rear hood lock is in the rear cross member of the frame below the hood lock.
Remove the rubber cap from below.
Move the hood latch through the emergency access to the left by means of a strong rod approx 1/4" diameter.
Alternatively, can you remove the grille and get in from the top ?
1959 S
http://tinyurl.com/3l95xmh
http://tinyurl.com/3l95xmh
-
- Nurse, I think I need some assistance
- Posts: 7806
- Joined: Mon Apr 16, 2012 4:31 pm
Re: Missing engine lid release knob
Just ended up pushing it further back and I can't find the knob
Mike are you sure that isn't for cars with soft tops?
Sent from my Mi A2 Lite using Tapatalk
Mike are you sure that isn't for cars with soft tops?
Sent from my Mi A2 Lite using Tapatalk
“A REMINDER. I would be grateful if those members who have borrowed bits from me in emergencies (e.g starter motor, oil cooler, etc) would return them and/or contact me”. – Chris Turner RIP
-
- Nurse, I think I need some assistance
- Posts: 7490
- Joined: Sat Aug 04, 2007 3:05 pm
- Location: Harrow Gate.
- Contact:
Re: Missing engine lid release knob

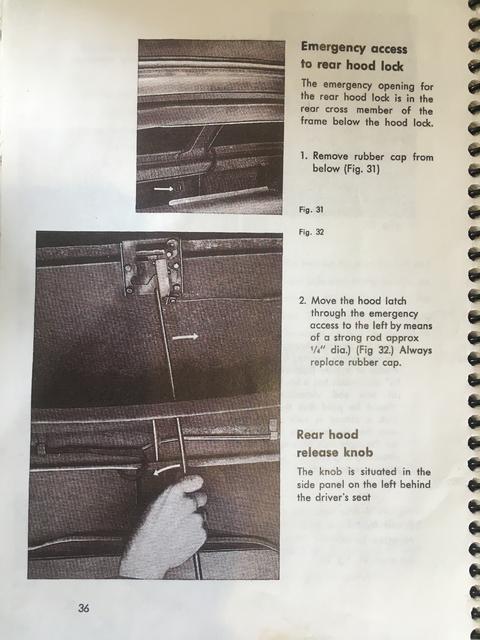

From the 356 A manual.
You're going in from underneath the car. Look for a rubber cap in what will be the 'floor' of the engine bay just under where the locking mechanism sits.
But again, can you remove the lid grill ? It's held in place with four screws.
You're going in from underneath the car. Look for a rubber cap in what will be the 'floor' of the engine bay just under where the locking mechanism sits.
But again, can you remove the lid grill ? It's held in place with four screws.
1959 S
http://tinyurl.com/3l95xmh
http://tinyurl.com/3l95xmh
-
- Nurse, I think I need some assistance
- Posts: 7806
- Joined: Mon Apr 16, 2012 4:31 pm
Re: Missing engine lid release knob
I found this in car a while ago but not sure is reusable. Shouldn't it have a metal insert for the thread?
What M size is the thread?
Sent from my Mi A2 Lite using Tapatalk
What M size is the thread?
Sent from my Mi A2 Lite using Tapatalk
“A REMINDER. I would be grateful if those members who have borrowed bits from me in emergencies (e.g starter motor, oil cooler, etc) would return them and/or contact me”. – Chris Turner RIP
-
- Nurse, I think I need some assistance
- Posts: 7490
- Joined: Sat Aug 04, 2007 3:05 pm
- Location: Harrow Gate.
- Contact:
Re: Missing engine lid release knob
Is that a black rubber thing ?
1959 S
http://tinyurl.com/3l95xmh
http://tinyurl.com/3l95xmh
-
- Nurse, I think I need some assistance
- Posts: 7490
- Joined: Sat Aug 04, 2007 3:05 pm
- Location: Harrow Gate.
- Contact:
Re: Missing engine lid release knob
Or is it one of these ?
Could the threaded insert have become detached and still be attached to the cable end ?
Could the threaded insert have become detached and still be attached to the cable end ?
1959 S
http://tinyurl.com/3l95xmh
http://tinyurl.com/3l95xmh
-
- Nurse, I think I need some assistance
- Posts: 7490
- Joined: Sat Aug 04, 2007 3:05 pm
- Location: Harrow Gate.
- Contact:
Re: Missing engine lid release knob
Did you have any luck with the removing of the engine lid grille ?
1959 S
http://tinyurl.com/3l95xmh
http://tinyurl.com/3l95xmh
-
- Nurse, I think I need some assistance
- Posts: 7806
- Joined: Mon Apr 16, 2012 4:31 pm
Re: Missing engine lid release knob
I haven't tried yet as I thought I would need something to attach on the end to stop it going back in again.
You are right perhaps I need to get the cable out to see if I can the insert is still there and be glued
Sent from my Mi A2 Lite using Tapatalk
You are right perhaps I need to get the cable out to see if I can the insert is still there and be glued
Sent from my Mi A2 Lite using Tapatalk
“A REMINDER. I would be grateful if those members who have borrowed bits from me in emergencies (e.g starter motor, oil cooler, etc) would return them and/or contact me”. – Chris Turner RIP
-
- Nurse, I think I need some assistance
- Posts: 7490
- Joined: Sat Aug 04, 2007 3:05 pm
- Location: Harrow Gate.
- Contact:
Re: Missing engine lid release knob
Prolly best to get a new knob.
1959 S
http://tinyurl.com/3l95xmh
http://tinyurl.com/3l95xmh
-
- DDK above all
- Posts: 186
- Joined: Sat Jul 20, 2013 10:15 pm
- Location: Sunshine Coast, Australia
Re: Missing engine lid release knob
My original BT6 car has no hole under the release mechanism for a rod to be used in emergencies. Neil, I just checked and my release knob is like the one pictured and is threaded (no metal insert). Your knob thread just seems worn. Perhaps fill it with some JB Weld and drill and tap it to suit?
Merv
Australia
Porsche 356 BT6 (1 of 44 Australian delivered)
Australia
Porsche 356 BT6 (1 of 44 Australian delivered)
-
- Nurse, I think I need some assistance
- Posts: 7806
- Joined: Mon Apr 16, 2012 4:31 pm
Re: Missing engine lid release knob
New knob installed. I had to take the grill off but not too challenging.
New muffler later this weekend.
Sent from my Mi A2 Lite using Tapatalk
New muffler later this weekend.
Sent from my Mi A2 Lite using Tapatalk
“A REMINDER. I would be grateful if those members who have borrowed bits from me in emergencies (e.g starter motor, oil cooler, etc) would return them and/or contact me”. – Chris Turner RIP
-
- Put a fork in me, I'm done!
- Posts: 1653
- Joined: Tue Jul 12, 2016 3:30 pm
- Location: Near Stroud, Glos. UK
- Contact:
Re: Missing engine lid release knob
Best of luck.
-
- Nurse, I think I need some assistance
- Posts: 7490
- Joined: Sat Aug 04, 2007 3:05 pm
- Location: Harrow Gate.
- Contact:
Re: Missing engine lid release knob
After a week of knob wrangling a new muffler should be a walk in the park.
