68S Tangerine Rebuild starts on the Jig

Post by Madjad »

Here we go again
1968 lhd that was tangerine.
Dismantled in 2010, and then stripped by Envirostrip.
It was then partially started and then ended up coming to me 11 years later

One long shopping list later, and I have a weld together meccano Porsche.


First job was to sit the new floor under and do a trial build with screws, just to see what fits before I take it completely apart.

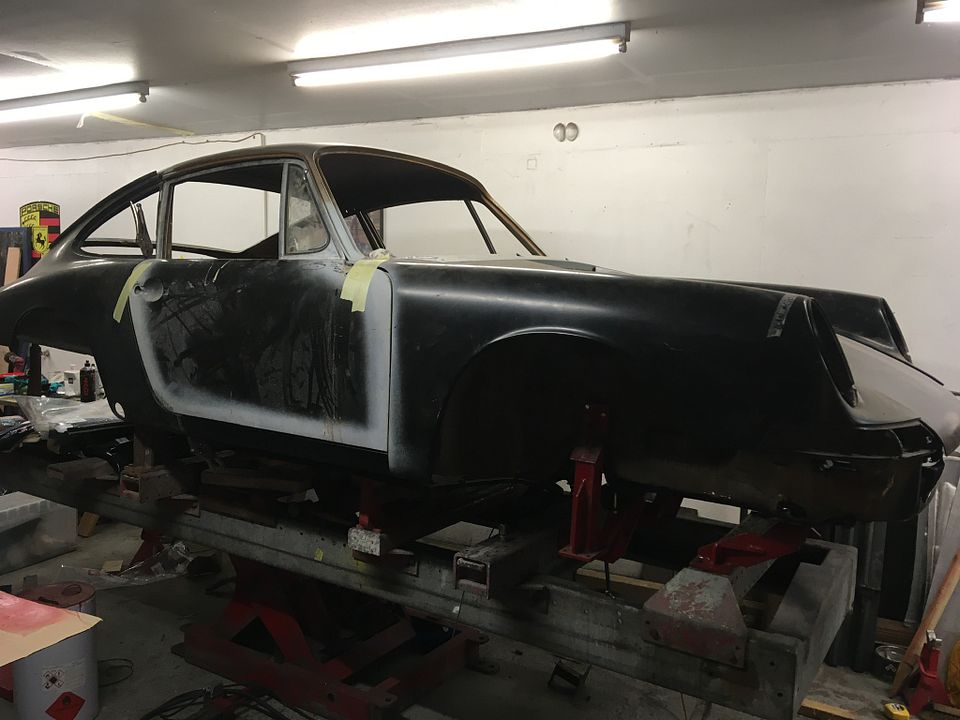

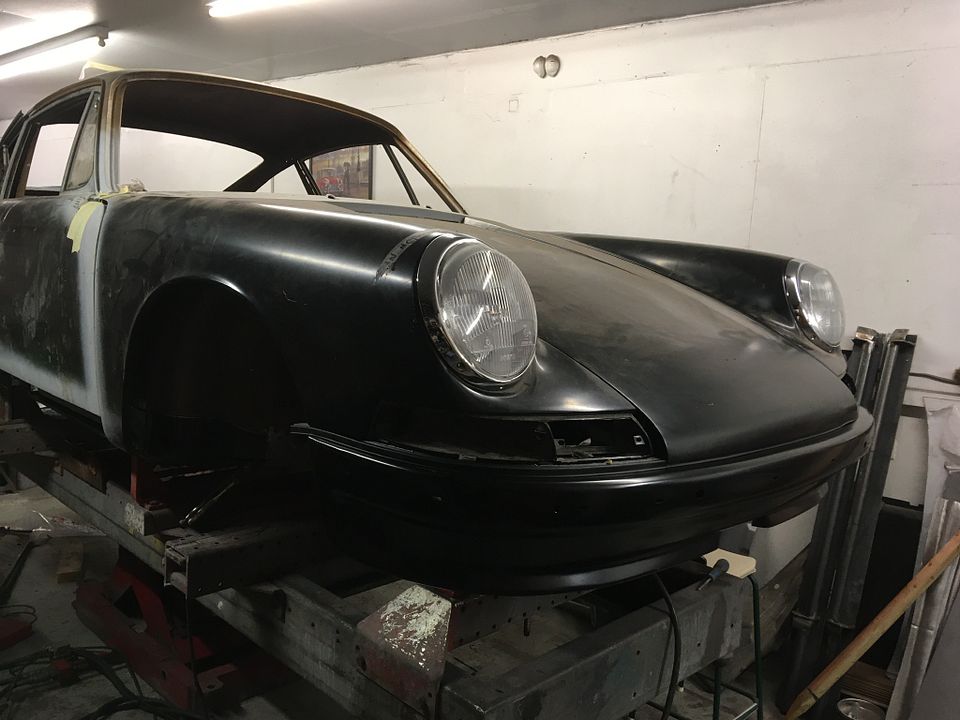

Trial build completed. Looks like a car, now to dismantle it and let the fun begin.



Last edited by Madjad on Fri Sep 23, 2022 11:11 am, edited 1 time in total.
Westbound Restorations since January 19
Madjad
DDK Seasoned Poster
Posts: 46
Joined: Fri Nov 20, 2020 9:14 pm

Re: 68S Tangerine Rebuild starts on the Jig

Post by Madjad »

Rh a post


Torsion tube is scrap




Rh inner wing and inner sill





All the same repairs needed on the lhd


And trial fitting of the new longitunal, and tank support panel

Torsion tube repairs





Inner sill repairs and new silencer

Seat pan back in

Floor pan in



Front end welded up

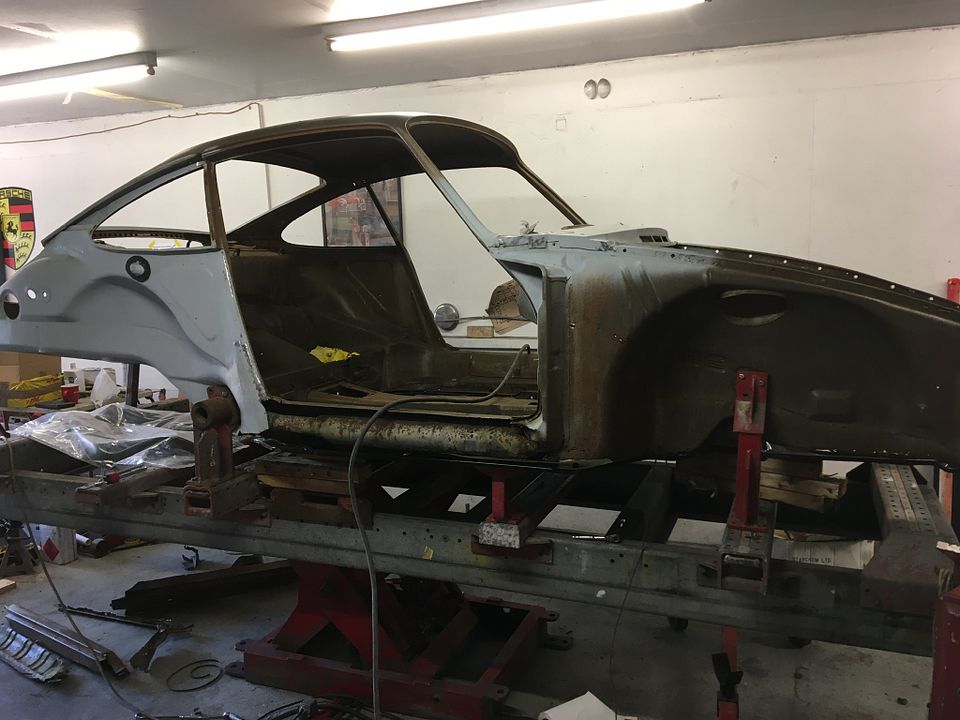

Inner / Outer sills on and kidney bowl
Westbound Restorations since January 19
Madjad
DDK Seasoned Poster
Posts: 46
Joined: Fri Nov 20, 2020 9:14 pm

Re: 68S Tangerine Rebuild starts on the Jig

Post by Madjad »

Rear scuttle repairs


Rear panel




Rear wing




Westbound Restorations since January 19
Madjad
DDK Seasoned Poster
Posts: 46
Joined: Fri Nov 20, 2020 9:14 pm

Re: 68S Tangerine Rebuild starts on the Jig

Post by Madjad »

And the front scuttle

I took a chance on the new Dansk scuttle, and the fit is very good



Wing looked a bad fit to the door, but, it’s a second hand door, and full of lead
It just shows the “production tolerance” on these early cars!

Wing is spaced with a washer at the moment, it closes up nicely with the thin seal!


Westbound Restorations since January 19
Madjad
DDK Seasoned Poster
Posts: 46
Joined: Fri Nov 20, 2020 9:14 pm

Re: 68S Tangerine Rebuild starts on the Jig

Post by Madjad »

Floor pan, and all wings are genuine porsche, along with the rear scuttle and the front longitudinals and the front panel.
Other panels used are Dansk, and restoration design.
Worst panel fit wise was the tank support panel, (Dansk) but I know where to hit these to make them fit🤣
Westbound Restorations since January 19
User avatar
MikeB
Put a fork in me, I'm done!
Posts: 1826
Joined: Thu Aug 07, 2008 11:13 pm
Location: N. Ireland

Re: 68S Tangerine Rebuild starts on the Jig

Post by MikeB »

That's some job to be tackling, coming together well. ;)
Cheers

Mike

RS Rep 3.0 on Webers
Fiesta ST Lanes Rally car
'71 Lotus Elan Sprint (finally finished !!!)
911hillclimber
Nurse, I think I need some assistance
Posts: 17519
Joined: Mon Mar 10, 2008 6:26 pm
Location: West Midlands

Re: 68S Tangerine Rebuild starts on the Jig

Post by 911hillclimber »

Some repair panels there I didn't know were available.
Could you now buy a new shell, or at least buy the panels and assemble one on a jig?
73T 911 Coupe, road/hillclimber 3.2L
Lola t 492 / 3.2 hillclimb racer
Boxster 987 Gen II 2.9
Madjad
DDK Seasoned Poster
Posts: 46
Joined: Fri Nov 20, 2020 9:14 pm

Re: 68S Tangerine Rebuild starts on the Jig

Post by Madjad »

MikeB wrote: Fri Sep 23, 2022 3:25 pm That's some job to be tackling, coming together well. ;)
It needed mending, just had to bite the bullet!
I’ll post more detailed pictures up of repairs to say the front scuttle air box, and rear bulkhead
